ST 558 Project 1
John Hinic
Querying APIs in R
Introduction
The purpose of this vignette is to give a brief overview of accessing APIs within R, writing custom functions that make the process easier, and performing some basic exploratory data analysis (EDA) on the data we use.
The API we are going to utilize is Polygon.io, which contains some financial data of various stocks, options, and currencies.
Required Packages
The following packages (and their purpose) will be required:
tidyverse: for general data manipulation and plottinghttr: used to query the API sourcejsonlite: used to parse the JSON data returned from the API
Basic API Info
The Polygon.io API contains a plethora of financial data pertaining to the stock markets as well as cryptocurrency. As far as pulling actual market data, there are several possible endpoints in the free version of the API:
- Aggregates (Bars)
- Grouped Daily (Bars)
- Daily Open/Close
- Previous Close
There are also many endpoints for reference data, which give more details to inform queries. These reference endpoints contain things like the tickers themselves, the types of tickers, news about tickers, etc.
It is not feasible to explore the entire API in this vignette, so we will focus on the “Aggregates (Bars)” market data endpoint, as well as the “Ticker Details V3” reference data endpoint.
Accessing the API
Accessing desired parts of the API essentially boils down to
constructing the correct URL. To do this, we start with the base URL
(https://api.polygon.io), then add onto that based on which data we
want. As stated, we are going to focus on exploring one market data
endpoint and one reference data endpoint. Each of these endpoints has a
specific URL format that you will need to add to the end of the base
URL, with several parameters for the user to specify within the “{}”.
The formats are as follows:
- Aggregates (Bars):
/v2/aggs/ticker/{stocksTicker}/range/{multiplier}/{timespan}/{from}/{to}- stocksTicker: the ticker symbol for the stock data we want to pull
- multiplier: what to multiply the specified timespan by (i.e. if multiplier = 3 and timespan = day, the 3-day bars will be returned)
- timespan: the size of the time window for the bars (can be minute, hour, day, week, month, quarter, or year)
- from: the start date in format “YYYY-MM-DD” (up to 2 years prior to the current date)
- to: the end date in format “YYYY-MM-DD”
- Ticker Details V3:
/v3/reference/tickers/{ticker}- ticker: the ticker symbol we want to pull the details of
There are also some options that are not required that the user can
specify, such as whether the results should be adjusted for splits
(TRUE by default), whether the sort should be ascending or descending,
and a limit for the number of results. To specify these options, you
would construct the URL as previously described, put a ‘?’ at the end,
and then specify the desired options (separated by ‘&’).
For any query of the API, you will also need to supply your API key at the end (similar to other options, you would specify ‘apiKey=yourkey’).
We are going to write some custom functions that allow the user to specify which data they want, and will then construct the URL, parse the data, and return a neat dataframe for the user to analyze.
Writing Functions
The first function will be designed to query the bars endpoint. It will require several arguments from the user:
- ticker (can be the symbol for any company or the full company name for a select few)
- start/end dates (must be in YYYY-MM-DD format)
- multiplier (as described above)
- timespan (as described above - minute, hour, day, week, month, quarter, or year)
- apikey (the user’s API key)
As stated, the ticker can be the official ticker symbol (i.e. “AAPL” for Apple) for any company, but will accept the following company names as well:
- “Apple”, “Apple Inc.”
- “Google”, “Alphabet Inc. Class A”
- “Microsoft”, “Microsoft Corporation”
- “Amazon”, “Amazon.com, Inc.”
Aside from the required arguments, there will also be several options that the user can specify if desired:
- adjusted (boolean, whether the results should be adjusted for splits)
- sort (“asc”/“ascending” or “desc”/“descending”)
- limit (the maximum number of base aggregates used to create aggregate results)
The returned data frame will only contain the relevant columns, not the data pertaining to the query itself.
pullBars <- function(
ticker,
start,
end,
multiplier = 1,
timespan = "day",
adj = TRUE,
sort = "asc",
limit = 50000,
apikey = "meDW5a0CdiQrg_pqfIRI1yanOQ3FwPFu"
) {
# resolving ticker symbols
tick <- switch(
tolower(ticker),
"apple" = ,
"apple inc." = "AAPL",
"google" = ,
"alphabet class a inc." = "GOOGL",
"amazon" = ,
"amazon.com, inc." = "AMZN",
"microsoft" = ,
"microsoft corporation" = "MSFT",
ticker
)
base <- "https://api.polygon.io/v2/aggs/ticker/"
#/v2/aggs/ticker/{stocksTicker}/range/{multiplier}/{timespan}/{from}/{to}
base2 <- paste0(base, tick, '/range/', as.character(multiplier), '/', timespan, '/', start, '/', end, '/')
# resolving sort values
srt <- switch(
tolower(sort),
"asc" = ,
"ascending" = "sort=asc",
"desc" = ,
"descending" = "sort=desc"
)
# resolving adjusted option
adjOpt <- switch(
as.character(adj),
"TRUE" = "adjusted=true",
"FALSE" = "adjusted=false"
)
# resolving limit option
lim <- paste0("limit=", as.character(limit))
# resolving key
key <- paste0("apiKey=", apikey)
# combining options into single string
opts <- paste(srt, adjOpt, lim, key, sep = "&")
# combining base URL with options for final URL
url <- paste(base2, opts, sep = "?")
# querying data and converting to data frame with only relevant columns
data <- GET(url) %>%
content("text", encoding = "UTF-8") %>%
fromJSON(flatten = TRUE) %>%
as.data.frame()
data %>% colnames() %>% print()
final <- data %>%
select(starts_with("ticker"), volume = results.v, volWeighted = results.vw, open = results.o,
close = results.c, high = results.h, low = results.l, transactions = results.n)
return(final)
}
With the function to pull the actual market data complete, we will now construct a function that pulls reference data with specific details about the supplied ticker and overall company. This function will be similar to the previous, but have fewer arguments due to the lower level of complexity:
- ticker (identical to previous function)
- date (optional, will return information about the supplied ticker on the specific date. Must be in YYYY-MM-DD format)
- apikey (the user’s API key)
This function will return
pullDetails <- function(
ticker,
date = '',
apikey = 'meDW5a0CdiQrg_pqfIRI1yanOQ3FwPFu'
) {
# resolving ticker symbols
tick <- switch(
tolower(ticker),
"apple" = ,
"apple inc." = "AAPL",
"google" = ,
"alphabet class a inc." = "GOOGL",
"amazon" = ,
"amazon.com, inc." = "AMZN",
"microsoft" = ,
"microsoft corporation" = "MSFT",
ticker
)
# resolving key
key <- paste0("apiKey=", apikey)
# resolving date if specified
if(length(date) > 0){
dateOpt <- paste0('date=', date, '&')
} else {
dateOpt <- ''
}
# constructing final URL
base <- 'https://api.polygon.io/v3/reference/tickers/'
opts <- paste0(tick, '?', dateOpt, key)
url <- paste0(base, opts)
# querying data and converting to data frame
GET(url) %>%
content("text", encoding = "UTF-8") %>%
fromJSON(flatten = TRUE) %>%
as.data.frame()
}
Function Demonstration
Now that both functions are completed, we will demonstrate some basic usage of them. For instance, we can pull daily aggregate (adjusted) data about Google from the beginning of 2022 until the start of June:
pullBars("Google", "2022-01-01", "2022-06-01")
## [1] "ticker" "queryCount" "resultsCount" "adjusted" "results.v" "results.vw" "results.o"
## [8] "results.c" "results.h" "results.l" "results.t" "results.n" "status" "request_id"
## [15] "count"
## ticker volume volWeighted open close high low transactions
## 1 GOOGL 1433947 2899.406 2901.100 2899.83 2917.020 2874.255 103431
## 2 GOOGL 1419962 2894.441 2907.920 2887.99 2929.698 2874.325 102667
## 3 GOOGL 2730914 2800.833 2888.400 2755.50 2889.988 2753.760 199566
## 4 GOOGL 1867371 2767.210 2739.970 2754.95 2798.800 2731.170 137860
## 5 GOOGL 1488028 2741.796 2762.910 2740.34 2768.970 2715.330 111612
## 6 GOOGL 2220406 2723.539 2701.560 2773.39 2776.390 2663.290 184011
## 7 GOOGL 1436485 2781.827 2760.140 2794.72 2804.320 2733.845 100618
## 8 GOOGL 1305602 2831.515 2823.000 2828.61 2852.155 2813.890 92377
## 9 GOOGL 1571830 2803.068 2830.800 2771.74 2857.000 2768.180 110059
## 10 GOOGL 1483064 2788.653 2741.580 2789.61 2814.840 2739.970 101814
## 11 GOOGL 1744405 2723.509 2723.500 2719.96 2742.630 2708.765 127973
## 12 GOOGL 1432382 2731.250 2730.470 2702.33 2759.190 2700.310 95860
## 13 GOOGL 1495357 2711.310 2725.000 2666.15 2752.520 2659.293 113285
## 14 GOOGL 2781021 2647.849 2651.870 2607.03 2697.311 2601.730 179951
## 15 GOOGL 3834712 2549.978 2519.560 2616.08 2624.060 2490.000 261299
## 16 GOOGL 2348028 2553.207 2574.800 2538.70 2587.980 2530.010 144722
## 17 GOOGL 2451475 2603.152 2622.380 2584.66 2660.000 2542.840 157806
## 18 GOOGL 1600939 2610.531 2626.080 2580.10 2653.045 2578.646 124746
## 19 GOOGL 1718074 2629.422 2593.180 2667.02 2667.130 2569.700 123757
## 20 GOOGL 1999300 2685.677 2683.240 2706.07 2709.460 2644.190 145681
## 21 GOOGL 3426282 2794.036 2751.890 2752.88 2755.855 2687.370 263412
## 22 GOOGL 6159961 2970.289 3025.000 2960.00 3030.932 2910.450 472215
## 23 GOOGL 3575421 2919.346 2914.110 2861.80 2993.500 2853.306 285469
## 24 GOOGL 2899911 2860.782 2868.893 2865.86 2897.500 2810.300 215947
## 25 GOOGL 2748665 2815.259 2885.000 2784.02 2885.000 2778.000 206650
## 26 GOOGL 2714180 2774.160 2780.530 2787.98 2800.000 2740.277 182224
## 27 GOOGL 2007194 2824.948 2819.270 2831.84 2850.485 2803.741 148118
## 28 GOOGL 1966533 2787.698 2794.070 2772.40 2829.690 2759.140 171567
## 29 GOOGL 1992917 2715.662 2772.000 2685.65 2783.125 2668.000 199155
## 30 GOOGL 1715054 2702.717 2665.130 2710.52 2726.000 2665.130 130001
## 31 GOOGL 1335563 2734.193 2751.410 2732.17 2762.170 2716.430 100139
## 32 GOOGL 1251065 2732.586 2732.930 2754.76 2761.720 2698.475 103758
## 33 GOOGL 1947475 2681.900 2724.860 2650.78 2742.270 2649.570 161496
## 34 GOOGL 2179872 2630.627 2669.340 2608.06 2681.400 2603.930 158081
## 35 GOOGL 2242037 2600.946 2596.762 2596.27 2643.605 2564.465 170077
## 36 GOOGL 1639301 2580.849 2632.970 2551.76 2641.020 2550.550 145602
## 37 GOOGL 2719619 2584.156 2499.065 2653.82 2660.000 2499.065 227050
## 38 GOOGL 1820299 2677.142 2671.040 2689.19 2705.430 2635.030 136500
## 39 GOOGL 1943221 2686.384 2661.000 2701.14 2715.030 2651.845 124537
## 40 GOOGL 1317268 2689.852 2697.570 2681.23 2725.110 2664.370 110974
## 41 GOOGL 1168490 2689.578 2692.560 2691.43 2705.250 2661.431 103434
## 42 GOOGL 1230162 2690.150 2720.200 2677.99 2728.790 2660.510 107530
## 43 GOOGL 1522532 2631.432 2658.550 2638.13 2677.030 2606.750 131108
## 44 GOOGL 2255647 2555.822 2629.760 2527.57 2634.700 2525.900 213009
## 45 GOOGL 2021355 2558.680 2525.000 2542.09 2625.000 2513.494 158099
## 46 GOOGL 1851270 2643.669 2625.000 2668.40 2674.710 2598.010 132417
## 47 GOOGL 1355070 2640.138 2625.320 2648.59 2665.435 2618.250 113022
## 48 GOOGL 1576322 2626.392 2669.770 2597.41 2675.910 2592.630 116520
## 49 GOOGL 1940563 2539.643 2605.000 2519.02 2608.180 2505.500 169621
## 50 GOOGL 1545976 2566.955 2539.520 2583.96 2597.090 2514.410 122172
## 51 GOOGL 1778849 2637.309 2614.660 2665.61 2666.660 2574.690 131832
## 52 GOOGL 1413196 2667.193 2662.980 2676.78 2681.608 2643.700 104280
## 53 GOOGL 2223345 2696.686 2668.490 2722.51 2724.880 2645.165 128817
## 54 GOOGL 1341584 2714.662 2723.270 2722.03 2741.000 2681.845 110283
## 55 GOOGL 1774777 2792.127 2722.030 2797.36 2821.000 2722.030 126456
## 56 GOOGL 1212670 2775.194 2774.050 2765.51 2791.770 2756.700 100972
## 57 GOOGL 1314828 2806.827 2784.000 2831.44 2832.375 2755.010 92646
## 58 GOOGL 1206154 2825.559 2838.320 2833.46 2840.700 2794.750 93037
## 59 GOOGL 1742463 2823.787 2818.010 2829.11 2840.050 2796.225 112885
## 60 GOOGL 1715851 2856.825 2852.950 2850.11 2875.870 2840.765 123693
## 61 GOOGL 994238 2842.137 2849.200 2838.77 2854.406 2832.000 83578
## 62 GOOGL 1874961 2800.040 2841.060 2781.35 2842.155 2780.490 112935
## 63 GOOGL 1297072 2794.688 2790.000 2803.01 2809.415 2766.150 90813
## 64 GOOGL 1298542 2855.003 2807.170 2859.43 2874.240 2806.210 97491
## 65 GOOGL 1070906 2823.046 2857.380 2811.82 2859.810 2807.650 95221
## 66 GOOGL 1623424 2739.196 2775.000 2730.96 2787.210 2710.340 144792
## 67 GOOGL 1311680 2717.970 2720.200 2717.77 2743.290 2684.548 111352
## 68 GOOGL 1257140 2682.823 2711.670 2665.75 2713.400 2659.310 106431
## 69 GOOGL 1842753 2596.368 2636.470 2576.47 2641.850 2573.370 170455
## 70 GOOGL 1635535 2573.906 2632.000 2554.29 2632.000 2535.780 152976
## 71 GOOGL 1396362 2585.445 2560.000 2597.88 2606.680 2554.825 107359
## 72 GOOGL 1579899 2553.418 2609.590 2534.60 2609.590 2532.020 138659
## 73 GOOGL 1040433 2547.162 2540.000 2553.53 2564.250 2523.640 100576
## 74 GOOGL 1324488 2586.475 2553.830 2600.18 2606.660 2539.990 102794
## 75 GOOGL 1577273 2576.199 2617.840 2560.80 2627.980 2550.000 131898
## 76 GOOGL 1822258 2525.101 2585.000 2496.29 2601.970 2490.530 188011
## 77 GOOGL 2842684 2420.596 2500.000 2392.71 2508.040 2378.500 274346
## 78 GOOGL 2304693 2432.846 2382.020 2461.48 2465.550 2370.220 173772
## 79 GOOGL 3643754 2372.912 2445.890 2373.00 2450.200 2370.220 293376
## 80 GOOGL 4591029 2292.823 2289.385 2285.89 2344.840 2254.730 304175
## 81 GOOGL 2444232 2339.114 2328.300 2370.45 2392.990 2282.300 162079
## 82 GOOGL 2133800 2309.742 2334.690 2282.19 2358.395 2276.290 156738
## 83 GOOGL 1776651 2301.972 2268.100 2331.66 2334.910 2252.000 139070
## 84 GOOGL 1248368 2345.512 2328.610 2346.68 2368.836 2320.690 96303
## 85 GOOGL 2495764 2385.657 2340.630 2445.22 2457.090 2302.320 142549
## 86 GOOGL 2291385 2334.426 2404.080 2330.11 2420.780 2300.115 177901
## 87 GOOGL 1980479 2316.623 2303.690 2314.93 2351.430 2280.310 141071
## 88 GOOGL 2040143 2264.735 2265.000 2250.22 2301.542 2240.010 165709
## 89 GOOGL 1995019 2295.481 2310.150 2287.90 2325.000 2258.010 137067
## 90 GOOGL 1876737 2286.383 2264.730 2272.05 2327.288 2264.730 128065
## 91 GOOGL 2691809 2240.816 2227.550 2256.88 2285.900 2196.490 184669
## 92 GOOGL 1751924 2319.571 2290.660 2321.01 2357.500 2272.100 121920
## 93 GOOGL 1299522 2293.789 2299.110 2288.90 2323.400 2277.790 97074
## 94 GOOGL 1152658 2321.028 2336.810 2329.46 2338.000 2297.395 85183
## 95 GOOGL 1756299 2258.429 2300.000 2237.99 2308.000 2231.110 132775
## 96 GOOGL 1700120 2224.656 2228.630 2207.68 2260.200 2200.000 123169
## 97 GOOGL 2448148 2163.565 2239.020 2178.16 2243.670 2115.927 165230
## 98 GOOGL 1859247 2214.092 2191.750 2229.76 2242.950 2174.820 121005
## 99 GOOGL 3838989 2090.080 2115.440 2119.40 2129.165 2037.694 252378
## 100 GOOGL 2012867 2107.895 2099.710 2116.10 2130.000 2077.130 126949
## 101 GOOGL 1897361 2152.183 2113.540 2155.85 2172.990 2104.497 109716
## 102 GOOGL 1895706 2230.240 2189.660 2246.33 2246.360 2182.765 115567
## 103 GOOGL 2490613 2278.789 2254.930 2275.24 2314.700 2241.570 136457
## 104 GOOGL 1830276 2294.603 2297.100 2277.84 2342.031 2265.000 120997
Notice that despite the many possible arguments of the function, we can simply specify the ticker, start date, and end date and it will return the data with reasonable defaults. We can also pull the company details using the second function (this time using the actual ticker symbol):
pullDetails("GOOGL")
## results.ticker results.name results.market results.locale results.primary_exchange
## 1 GOOGL Alphabet Inc. Class A Common Stock stocks us XNAS
## results.type results.active results.currency_name results.cik results.composite_figi results.share_class_figi
## 1 CS TRUE usd 0001652044 BBG009S39JX6 BBG009S39JY5
## results.market_cap results.phone_number results.address.address1 results.address.city results.address.state
## 1 1.55373e+12 650-253-0000 1600 AMPHITHEATRE PARKWAY MOUNTAIN VIEW CA
## results.address.postal_code
## 1 94043
## results.description
## 1 Alphabet Inc is a holding company, with Google, the Internet media giant, as a wholly owned subsidiary. Google generates 99% of Alphabet revenue, of which more than 85% is from online ads. Google's other revenue is from sales of apps and content on Google Play and YouTube, as well as cloud service fees and other licensing revenue. Sales of hardware such as Chromebooks, the Pixel smartphone, and smart homes products, which include Nest and Google Home, also contribute to other revenue. Alphabet's moonshot investments are in its other bets segment, where it bets on technology to enhance health (Verily), faster Internet access to homes (Google Fiber), self-driving cars (Waymo), and more. Alphabet's operating margin has been 25%-30%, with Google at 30% and other bets operating at a loss.
## results.sic_code results.sic_description results.ticker_root results.ticker_suffix
## 1 7370 SERVICES-COMPUTER PROGRAMMING, DATA PROCESSING, ETC. GOOG L
## results.homepage_url results.total_employees results.list_date results.share_class_shares_outstanding
## 1 https://www.abc.xyz 163906 2004-08-19 300760000
## results.weighted_shares_outstanding status request_id
## 1 658499877 OK e201a90c332880c68820dad85eaa5735
We could also change some options with the market data we pull. For example, we can pull weekly aggregate (adjusted) data about Microsoft from all of 2021:
msft <- pullBars("Microsoft", "2021-01-01", "2021-12-31", timespan = "week")
## [1] "ticker" "queryCount" "resultsCount" "adjusted" "results.v" "results.vw" "results.o"
## [8] "results.c" "results.h" "results.l" "results.t" "results.n" "status" "request_id"
## [15] "count"
msft
## ticker volume volWeighted open close high low transactions
## 1 MSFT 76300478 223.3648 224.4500 222.42 227.1800 219.6800 791051
## 2 MSFT 147520111 216.9389 222.5300 219.62 223.0000 211.9400 1594339
## 3 MSFT 126960294 215.0147 218.4700 212.65 218.9100 212.0300 1275648
## 4 MSFT 129177135 222.9220 213.7500 225.95 230.0700 212.6300 1283967
## 5 MSFT 243723031 234.6231 229.1200 231.96 242.6400 224.2200 2758975
## 6 MSFT 129514486 240.8368 235.0600 242.20 245.0900 232.4300 1478121
## 7 MSFT 100265726 243.1295 243.1500 244.99 245.9200 240.8100 1056654
## 8 MSFT 89452259 242.6885 245.0300 240.97 246.1300 240.1800 881153
## 9 MSFT 170135168 232.5341 237.4200 232.38 237.9300 227.8800 2077270
## 10 MSFT 168682727 230.8671 235.9000 231.60 237.4700 224.2600 2448378
## 11 MSFT 150625031 233.7987 231.3700 235.75 239.1700 227.1300 2101379
## 12 MSFT 164911946 233.6912 234.9600 230.35 240.0550 229.3496 1943563
## 13 MSFT 146912864 235.6140 230.2700 236.48 241.0500 230.1400 1846070
## 14 MSFT 123972320 236.2029 236.5900 242.35 242.8400 231.1000 1404537
## 15 MSFT 130373147 250.5659 242.7600 255.85 255.9900 242.7000 1506538
## 16 MSFT 124563138 257.9493 254.7100 260.74 261.0000 254.6200 1543702
## 17 MSFT 114015581 259.1389 260.1900 261.15 261.7800 255.6400 1464692
## 18 MSFT 168964799 255.1618 261.6600 252.18 263.1900 249.0000 2223055
## 19 MSFT 127581742 249.4466 253.4000 252.46 254.3500 244.6900 1661264
## 20 MSFT 153112228 244.7101 250.8700 248.15 251.7300 238.0700 1776359
## 21 MSFT 114508724 244.6140 246.5500 245.17 248.3300 238.6000 1329014
## 22 MSFT 99575336 250.6823 247.7850 249.68 252.9400 247.5100 1060908
## 23 MSFT 93009220 247.8853 251.2300 250.79 251.6500 243.0000 999043
## 24 MSFT 106985149 254.8513 249.9800 257.89 258.4868 249.8100 1174494
## 25 MSFT 129115697 259.2211 257.9000 259.43 262.3000 254.4200 1338431
## 26 MSFT 116146870 264.7156 259.8200 265.02 267.8500 257.9200 1239720
## 27 MSFT 104258323 271.6284 266.1850 277.65 278.0000 265.9100 1190990
## 28 MSFT 103108193 277.7930 278.0300 277.94 280.6945 274.3000 1262423
## 29 MSFT 116956560 280.9168 279.1570 280.75 284.1000 276.5800 1365818
## 30 MSFT 129711125 281.7096 278.9335 289.67 289.9900 274.4500 1461734
## 31 MSFT 129365745 286.5566 289.0000 284.91 290.1500 282.9500 1565654
## 32 MSFT 80817639 286.9369 286.3600 289.46 289.6300 283.7400 1008711
## 33 MSFT 81509578 288.6485 289.7500 292.85 292.9000 285.2000 957547
## 34 MSFT 134876629 296.4695 293.1900 304.36 305.8400 288.6400 1550926
## 35 MSFT 101151298 301.7880 303.2450 299.72 305.6500 296.8300 1226590
## 36 MSFT 92578490 302.4566 301.1150 301.14 305.1900 300.1800 1098314
## 37 MSFT 71976514 298.7091 301.0050 295.71 302.1400 295.3800 1087800
## 38 MSFT 135772647 300.9622 297.5500 299.87 305.3200 294.0800 1523421
## 39 MSFT 120872685 296.6018 296.3300 299.35 300.9000 289.5200 1635485
## 40 MSFT 156105387 286.5897 296.1400 289.10 296.4700 281.2900 2070438
## 41 MSFT 122710419 289.5200 287.4000 294.85 296.6409 280.2500 1694436
## 42 MSFT 112588007 298.2066 292.9200 304.21 304.4500 292.3500 1391688
## 43 MSFT 91240936 307.9591 303.5700 309.16 311.0900 302.6900 1220030
## 44 MSFT 159313433 320.4513 309.3600 331.62 332.0000 306.4600 1935249
## 45 MSFT 121242671 332.9083 331.3550 336.06 338.7900 326.3700 1643556
## 46 MSFT 108186069 334.4877 337.3000 336.72 338.7200 329.9200 1372271
## 47 MSFT 100668957 339.8152 337.5400 343.11 345.1000 334.0340 1269929
## 48 MSFT 107156474 337.7542 344.6200 329.68 349.6700 328.1200 1422276
## 49 MSFT 177334367 330.6815 334.9400 323.01 339.2800 318.0300 2380156
## 50 MSFT 146125331 333.5749 323.9500 342.54 343.0000 319.2300 1929092
## 51 MSFT 191637792 328.9164 340.6800 323.80 343.7900 317.2500 2344582
## 52 MSFT 97516470 326.8824 320.0500 334.69 336.3900 317.5700 1364356
## 53 MSFT 84640440 340.3078 335.4600 336.32 344.3000 335.4300 1196308
Analysis Data
Now that we have written and tested our functions, we are going to use them to pull some data for basic exploratory data analysis. We are going to pull the weekly aggregate (adjusted) data of Apple, Microsoft, Google, and Amazon going from all of 2021, then concatenate them all into a single dataset with an added variable called “week” that is simply an indicator for what number week it is in the year.
apple <- pullBars("Apple", "2021-01-01", "2021-12-31", timespan = "week")
## [1] "ticker" "queryCount" "resultsCount" "adjusted" "results.v" "results.vw" "results.o"
## [8] "results.c" "results.h" "results.l" "results.t" "results.n" "status" "request_id"
## [15] "count"
google <- pullBars("Google", "2021-01-01", "2021-12-31", timespan = "week")
## [1] "ticker" "queryCount" "resultsCount" "adjusted" "results.v" "results.vw" "results.o"
## [8] "results.c" "results.h" "results.l" "results.t" "results.n" "status" "request_id"
## [15] "count"
amazon <- pullBars("AMZN", "2021-01-01", "2021-12-31", timespan = "week")
## [1] "ticker" "queryCount" "resultsCount" "adjusted" "results.v" "results.vw" "results.o"
## [8] "results.c" "results.h" "results.l" "results.t" "results.n" "status" "request_id"
## [15] "count"
all <- bind_rows(apple, google, msft, amazon) %>%
mutate(week = rep(seq(1:53), 4))
We are also going to derive another variable of interest. We are going to subtract the open price from the closing price, then take that as a proportion of the weighted average (and multiply that number by 100 to make the numbers more readable). This will give us a measure of growth that is proportional to the overall price of the stock for each company.
final <- all %>%
mutate(growth = 100*(close - open) / volWeighted)
Exploratory Data Analysis
For our exploratory data analysis, we are primarily going to look at the
previously derived growth variable as our response. We are going to
look at this across the different companies, as well as weeks of the
year.
Univariate Summaries
To start, we will look at some simple summaries of our growth variable.
summary(final$growth)
## Min. 1st Qu. Median Mean 3rd Qu. Max.
## -9.8734 -1.4395 0.4052 0.5388 2.3506 12.1432
We can see that our mean is slightly higher that our median, which means the data might be a little right skewed. The fact that both measures of center are above 0 indicates that, on average, all 4 companies had positive growth over 2021. To further investigate, we will look at a histogram:

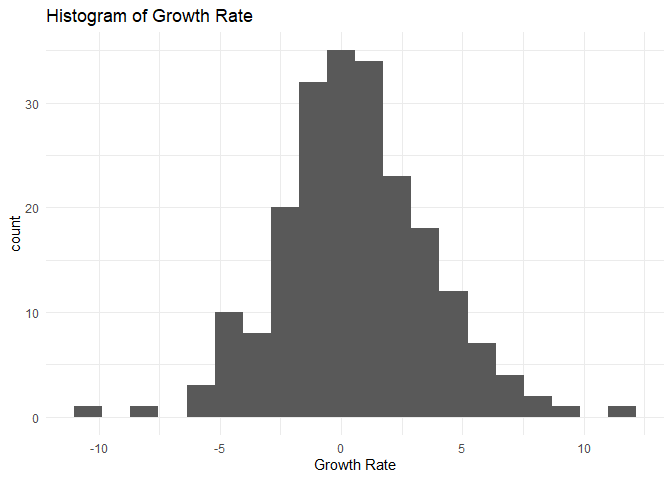

final %>% ggplot(aes(growth)) +
geom_histogram(bins = 20) +
labs(title = "Histogram of Growth Rate", x = "Growth Rate") +
theme_minimal()
It appears that the data is very slightly right skewed, but is pretty symmetrical for the most part.
Bivariate Summaries
To start with, we will look at summaries of the growth rate across the 4 companies.
final %>%
group_by(ticker) %>%
summarise(Median = median(growth),
Mean = mean(growth),
StD = sd(growth),
Min = min(growth),
Max = max(growth))
## # A tibble: 4 x 6
## ticker Median Mean StD Min Max
## <chr> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 AAPL 0.271 0.446 3.31 -7.97 8.78
## 2 AMZN -0.126 0.0882 3.36 -9.87 6.07
## 3 GOOGL 0.549 0.909 3.19 -4.92 12.1
## 4 MSFT 0.756 0.712 2.66 -5.13 6.95
Here, it looks like 3 of the 4 companies had a positive growth rate, but Amazon actually had negative median growth rate throughout 2021. However, the mean is still above 0 - this would mean that Amazon had more negative growth weeks than positive, but overall the positive growth weeks slightly outweighed the negative.
We can also look at the histograms grouped by company (with a reference line at 0):
final %>% ggplot(aes(growth, fill = ticker)) +
geom_histogram(bins = 20) +
labs(title = "Histograms of Growth Rate by Company", x = "Growth Rate") +
theme_minimal() +
geom_vline(xintercept = 0) +
facet_wrap(~ticker)
Here, it looks like Microsoft and Google clearly had better years than Apple and Amazon. It appears that Apple had several very good weeks in terms of growth but was largely centered at 0, while Amazon had no particularly good weeks but had 1 particularly bad one. On the other hand, Google and Microsoft appear to have been very consistently high.

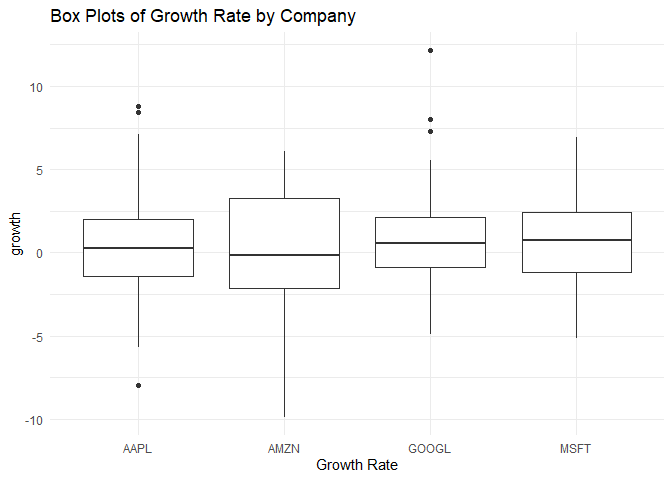

Similarly, we can look at box plots as well:
final %>% ggplot(aes(x = ticker, y = growth)) +
geom_boxplot() +
labs(title = "Box Plots of Growth Rate by Company", x = "Growth Rate") +
theme_minimal()
Here we can clearly see the few outlying months for Apple (2 of positive growth and 1 with negative), as well as several very positive months for Google. On the other hand, we can see that Microsoft was just consistently high, while Amazon was consistently low (relative to the others).
Trivariate Summaries
Instead of looking at simple summaries of the growth rate, we can also look at the weighted selling averages across time (i.e. the weeks). To start, we will look at a simple line graph of week by weighted average, colored by company.

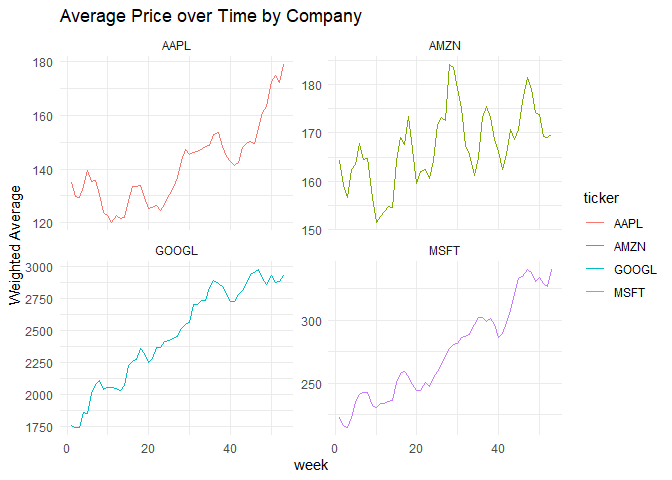

final %>% ggplot(aes(week, volWeighted, color = ticker)) +
geom_line() +
facet_wrap(~ticker, scales = "free_y") +
labs(title = "Average Price over Time by Company", y = "Weighted Average") +
theme_minimal()
When looking at the prices over time, we could easily form a different opinion about the Apple stock prices. Clearly, they had a dip in the middle of the year but started to rapidly increase towards the end of the year. This means that the 2 particularly high values of growth rate for Apple were likely at the end of the year, which would be much more relevant in predicting the next years growth compared to earlier numbers.
It also appears that Google’s growth might have been plateauing somewhat towards the end of the year, but it is hard to say without further analysis. Microsoft seems to consistently dip and then continue rising, while Amazon seems to be all over the place.

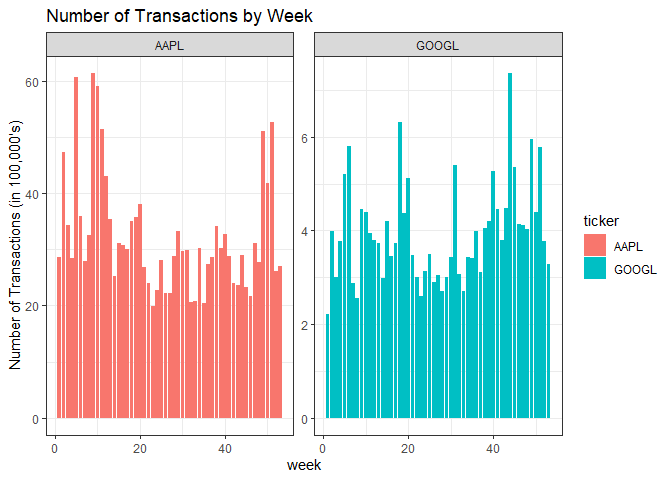

Because of this trend at the end of the year specifically for Apple and Google, we can look at a contingency table of number of transactions by week for those two companies as well.
final %>% filter(ticker %in% c("GOOGL", "AAPL")) %>%
mutate(adjCount = transactions / 100000) %>%
group_by(ticker, week) %>%
summarise(n = adjCount) %>%
pivot_wider(names_from = ticker, values_from = n) %>%
print(n = 53)
## # A tibble: 53 x 3
## week AAPL GOOGL
## <int> <dbl> <dbl>
## 1 1 28.6 2.21
## 2 2 47.4 4.00
## 3 3 34.3 3.00
## 4 4 28.5 3.78
## 5 5 60.6 5.21
## 6 6 35.9 5.81
## 7 7 27.9 2.89
## 8 8 32.6 2.55
## 9 9 61.4 4.46
## 10 10 59.1 4.39
## 11 11 51.3 3.95
## 12 12 43.0 3.79
## 13 13 35.4 3.74
## 14 14 25.2 2.98
## 15 15 31.0 4.20
## 16 16 30.7 3.45
## 17 17 30.1 3.72
## 18 18 35.1 6.32
## 19 19 35.7 4.37
## 20 20 38.0 5.13
## 21 21 26.9 3.48
## 22 22 23.9 3.00
## 23 23 19.9 2.61
## 24 24 22.7 3.13
## 25 25 28.1 3.51
## 26 26 22.1 2.90
## 27 27 22.3 3.04
## 28 28 28.7 2.70
## 29 29 33.2 3.01
## 30 30 29.6 3.44
## 31 31 29.9 5.40
## 32 32 20.5 3.06
## 33 33 20.7 2.71
## 34 34 30.3 3.44
## 35 35 20.5 3.41
## 36 36 27.4 4.00
## 37 37 28.6 3.11
## 38 38 34.2 4.05
## 39 39 30.2 4.20
## 40 40 32.7 5.27
## 41 41 28.8 4.45
## 42 42 24.0 3.80
## 43 43 23.7 4.48
## 44 44 29.1 7.36
## 45 45 23.3 5.36
## 46 46 21.6 4.14
## 47 47 31.2 4.12
## 48 48 27.7 4.03
## 49 49 51.1 5.95
## 50 50 41.9 4.39
## 51 51 52.7 5.78
## 52 52 26.1 3.79
## 53 53 27.0 3.29
Here, we can see that both transaction numbers are highly variable, with Google’s being much higher in general. It will be much easier to digest this data looking at 2 bar graphs:
final %>% filter(ticker %in% c("GOOGL", "AAPL")) %>%
mutate(adjCount = transactions / 100000) %>%
ggplot(aes(x = week, y = adjCount, fill = ticker)) +
geom_bar(stat="identity") +
facet_wrap(~ticker, scales = "free_y") +
theme_bw() +
labs(title = "Number of Transactions by Week", y = "Number of Transactions (in 100,000's)")
Here, it definitely does appear that Apple has 2 weeks that stand out towards the end of the year, but they are still not as high as some weeks early in the year. On the other hand, Google’s transaction numbers seems to be highly variable all throughout the year.

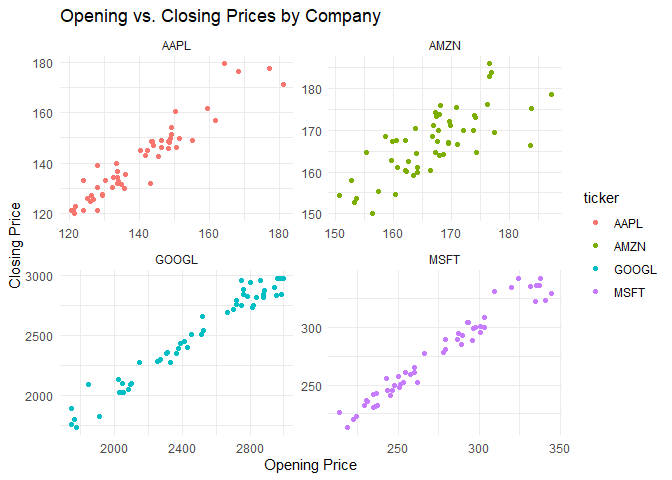

Lastly, we can look at a scatter plot of the opening vs. closing prices colored by company. We expect them to be closely correlated, but looking at the scatter plot by company may make the patterns a bit more clear.
final %>% ggplot(aes(open, close, color = ticker)) +
geom_point() +
facet_wrap(~ticker, scales = "free") +
labs(title = "Opening vs. Closing Prices by Company", y = "Closing Price", x = "Opening Price") +
theme_minimal()
As expected, the two values are very closely correlated. However, the patterns do seem to vary a decent bit by company. Apple has the few outlier weeks very high for both, while Google seems to have some clustering on both ends (that are also a bit more varied). Amazon is much more spread out in general, whioe Microsoft appears to be the king of consistency.
